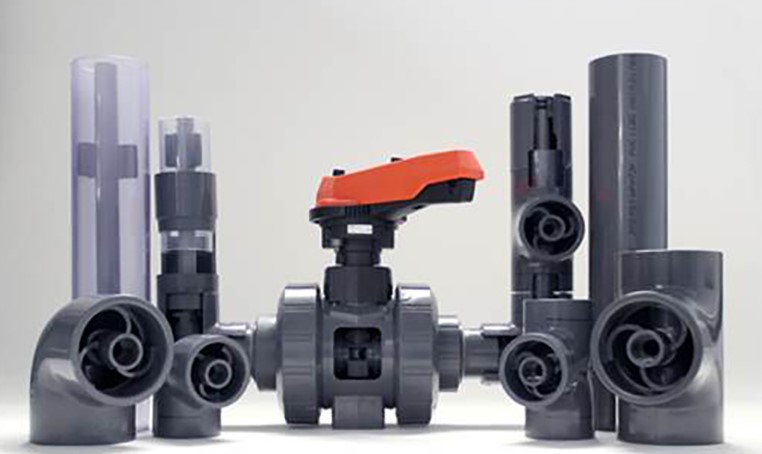

GF DOUBLE-SEE
Double-See is a Dual Contained pipework system made from PVC-U material that uses traditional cement jointing for ease of installation.
The system provides prefabricated pipe and fittings which incorporates a special centraliser system, that allows for thermal movement, offering a true point of difference from other dualcontained systems on the market.
Double-See is ideal for water and waste treatment applications as it allows the safe transportation of different fluids and some chemical concentrates. Corrosion free and with a reduced risk to health & of environmental pollution. Double-See has gained a good reputation as a reliable, simple and easy to install but trusted solution on many projects.
The table below provides some basic information on the range available...
| Range | Description | Carrier - PVC | Carrier (Outer) | Containment - PVC |
|---|---|---|---|---|
| DSEE | Double-See - 1/2"/2" | 17.6 mm ID | CLASS E (E) | 60.2 mm OD |
| DSEE | Double-See - 3/4"/3" | 22.3 mm ID | CLASS E (E) | 88.7 mm OD |
| DSEE | Double-See - 1"/3" | 28.6 mm ID | CLASS E (E) | 88.7 mm OD |
| DSEE | Double-See - 1 1/2"/4" | 41.5 mm ID | CLASS E (E) | 114.1 mm OD |
| DSEE | Double-See - 2"/4" | 51.9 mm ID | CLASS E (E) | 114.1 mm OD |
| DSEE | Double-See - 3"/6" | 76.5 mm ID | CLASS E (C) | 168.0 mm OD |
| DSEE | Double-See - 4"/8" | 98.5 mm ID | CLASS E (C) | 218.8 mm OD |
| DSEE | Double-See - 6"/10" | Please speak to a member of our team | ||
** all data is for illustration only based on manufacturers data which is subject to their tolerances and change without notice
pressures stated at 20c
