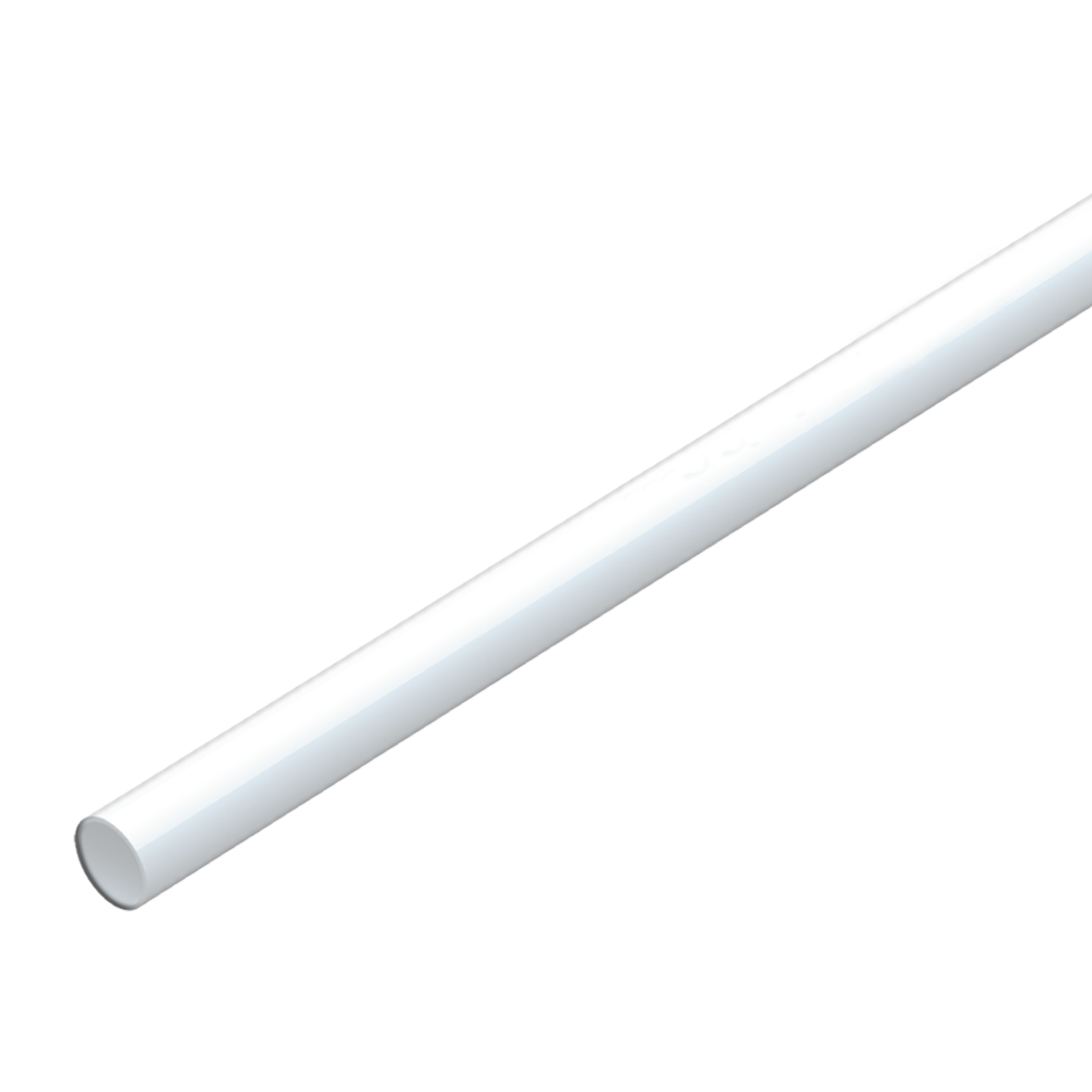

PTFE (PVDF/FEP/PFA TUBE)


Fluoropolymer and other smooth bore tubing offer attributes that mean they are widely used in dosing applications starting with their excellent chemical resistance superior temperature performance and inherent purity. While maximum lengths across the tube types and sizes do of course vary we can offer standard coil lengths which are normally 25m, 50m or 100m with many available on request at longer lengths.

Standard "thin wall" tubing is complimented by options that offer increased pressure ratings at some sizes.

Working with leading suppliers of high-quality PTFE tubing, Ball Valves, PVDF compression fittings, PFA tubing, FEP tubing, check valves, pipe connectors and tri-clamp connectors.

Features & Benefits

  • Suitable for food use
  • Non-hardening
  • Non-stick
  • Durable
  • Retains flexibility and integrity within a wide operating temperature range
  • Excellent resistance against aging
  • Plasticiser free
  • Low permeability
  • Excellent friction co-efficient

Applications

  • Transport of harsh chemicals
  • Transport of nutrients
  • Painting and printing equipment
  • Abrasion protection
  • Welding electrode guide tubing
  • Electrical insulation
  • Analytical instruments
  • Environmental monitoring equipment
  • Heat exchangers
  • Component covering

Chemical Resistance

  • Almost universally inert to industrial chemicals and solvents
  • Can handle virtually any corrosive material in use today
  • Low permeability of the tube contents
Range Description Size Carrier - Min Burst Pressure Bend Radius
TUBE PTFE - 4 4 x 6 mm 1015 PSI / 70 bar 36 mm
TUBE PTFE - 5 5 x 8 mm 1218 PSI / 84 bar 43 mm
TUBE PTFE - 6 6 x 8 mm 667 PSI / 46 bar 64 mm
TUBE PTFE - 8 8 x 10 mm 507 PSI / 35 bar 100 mm
TUBE PTFE - 9 9 x 12 mm 667 PSI / 46 bar 96 mm
TUBE PTFE - 10 10 x 12 mm 406 PSI / 28 bar 144 mm
TUBE PTFE - 12 12 x 14 mm 319 PSI / 22 bar 168 mm
  • Colours: Natural
  • Lengths: 25m, 50m, 75m & 100m coils & 500m drums, some sizes can also be cut to your required length from stock
  • Temperature range: -70°C to +260°C
  • Call the sales office for more info on temperature vs. pressure in PTFE tube.
  • Packing: Coiled and cabled tied
  • Custom Manufacture: The above are stock sizes. We can supply custom manufactured PTFE, with a variety of wall thicknesses & sizes.

  • ** all data is for illustration only based on manufacturers data which is subject to their tolerances and change without notice
        pressures stated at 20c
