CLEARDOSE (RPVC)

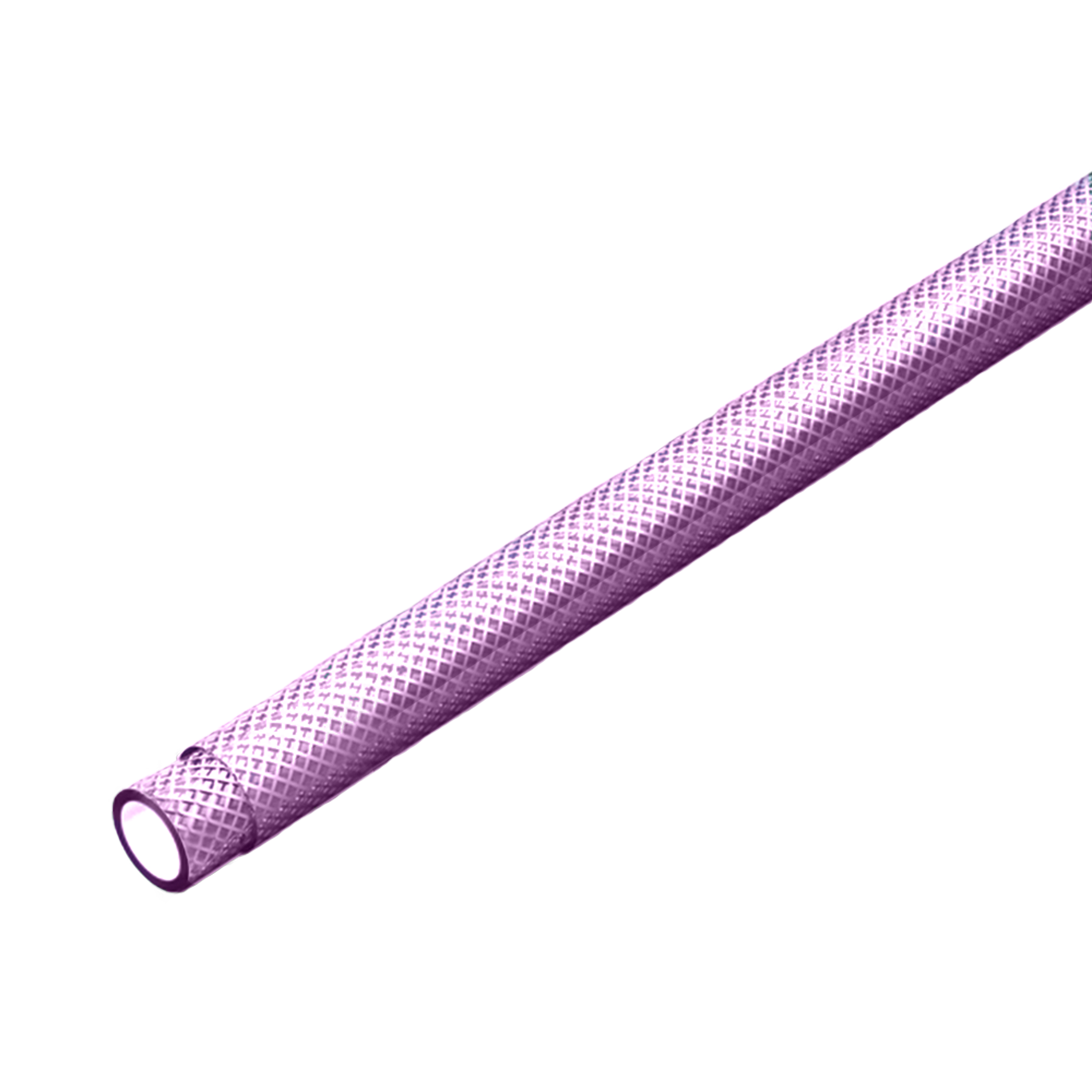

Our Cleardose Reinforced PVC carrier hose is a mulit layered extruded hose, consisting of a tinted PVC outer layer (standard non tinted also available), polyester fibre reinforcing and a clear PVC inner which is Phthalate free and  EU No. 10/2011 compliant for food contact applications.

Cleardose is an EC compliant, low toxic PVC hose widely used for a diverse range of applications for the transfer of food, water, air, chemicals, gas, fuels and oils. This multi-purpose, high quality all – round performer remains a popular choice.

Resistant to a wide range of chemicals including many acids / alkalis.
Abrasion resistant. Thicker wall gives medium to heavy duty durability for improved resistance to abrasion.
Specially selected high tensile Polyester fiber reinforcement used at the optimum braid angle of 54° 44’(54.73°) creates an effective and balanced pressure hose.
EU No. 10/2011 compliant for food contact applications & RoHS 3 compliant.
Manufactured from cadmium and silicone-free materials, using a specialist PVC to reduce the taint of drinking water.
Manufactured in accordance with ISO 5774. • 4:1 safety factor.
NSF51 + NSF61 approved for the transfer of drinking water

Cleardose is available in a range of sizes from 1/4" to 2" ID and can be used with a wide range of termination fittings, in addition to standard coil sizes we can supply the hose in longer lengths to suit your requirements. (MOQ & lead time may apply please speak to one our technical sales team)

Temperature range -15 C to + 55 C

Range Description Carrier - LDPE Carrier - Min Burst Pressure Bend Radius
HOSE Cleardose - 6.3 6.3 x 11.5 mm 64 Bar 20 mm
HOSE Cleardose - 10 10 x 16 mm 64 Bar 40 mm
HOSE Cleardose - 12.5 12.5 x 18.5 mm 60Bar 55 mm
HOSE Cleardose - 19 19 x 26 mm 40 Bar 135 mm
HOSE Cleardose - 25 25 x 33 mm 40 Bar 210 mm
HOSE Cleardose - 32 32 x 42 mm 40 Bar 320 mm
HOSE Cleardose - 38 38 x 48 mm 40 Bar 420 mm
HOSE Cleardose - 50 50 x 62 mm 32 Bar 650 mm

** all data is for illustration only based on manufacturers data which is subject to their tolerances and change without notice
    pressures stated at 20c
