PASSTHROUGH & OTHER TERMINATION KITS
Passthrough Kits
Whether you need to pass your dual contained carrier into a catch pot or through a POA or other panel into a bunded area our range of specially matched kits allow for easy installation.

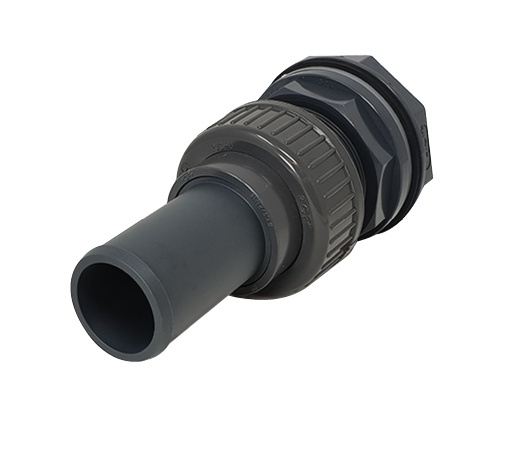

The kits comprise either a custom tail and tank connector or for larger bores a complete custom fitting.
This ensures that you have a secure termination of the outer hose and sufficient space for the carrier to pass safely through with a leak path into the alarmed area.
Our fitting flexibility allows for many differing requirements to be met and we can offer these as custom fabrications to suit special projects or specific jointing or material requirements for example PP-H.
| Range | Description | Tank Connector Included | Carrier Passthrough | Outer Tail |
|---|---|---|---|---|
| TFDS | Double Safe - 6.3/19 | Yes | up to 13mm OD | 19 mm |
| TFDS | Double Safe - 6.3/25 | Yes | up to 19mm OD | 25 mm |
| TFDS | Double Safe - 10/25 | Yes | up to 19mm OD | 25 mm |
| TFDS | Double Safe - 12.5/25 | Yes | up to 19mm OD | 25 mm |
| TFDS | Double Safe - 19/38 | Yes | up to 27mm OD | 38 mm |
| TFDS | Double Safe - 25/45 | Yes | up to 34mm OD | 45 mm |
| TFDS | Double Safe - 32/50 | Yes | up to 42mm OD | 50 mm |
| TFDS | Double Safe - 38/60 | Single Fitting | up to 49mm OD | 60 mm |
| TFDS | Double Safe - 50/75 | Single Fitting | up to 64mm OD | 75 mm |
** all data is for illustration only and is subject to change and manufacturing tolerances
Other Fittings & Adaptors
In addition to our standard range we have developed a number of custom fittings to suit other terminations such as to Prominent pumps , Grundfos Pumps and dosing lances as well as to allow easy connections to unions and valves.

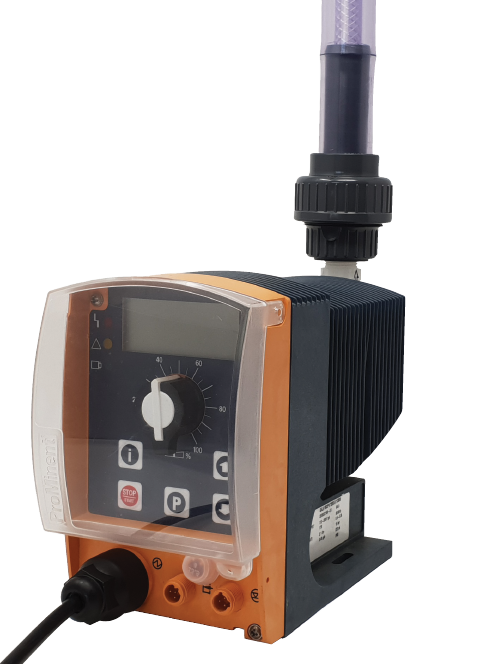

For example the kit in the image pictured comprises a custom threaded adaptor to the prominent outlet, internal union based carrier hose tail and outer closure (optional & more commonly used on the dosing lance or equipment).
These can be combined with our more traditional catchpot designs or more compact leak detection fittings to give a comprehensive solution.
